The term O rings might appear to be a simple mechanical reference, but behind its unassuming name lies one of the most widely used and fundamentally important sealing components in the world of engineering, manufacturing, and machinery. The O ring — named for its circular, ring-like shape — serves a critical function across an incredibly wide array of industries, including automotive, aerospace, plumbing, medical devices, and industrial equipment. It is designed to seal two parts at their interface, preventing the escape of gases or liquids and ensuring airtight or watertight performance under pressure.
Although it might appear as a simple rubber circle, the efficiency, performance, and safety of complex systems can depend on the proper selection, installation, and maintenance of the O ring. This article aims to provide an in-depth, 100% original, and clearly structured explanation of the O ring, its purpose, design, materials, advantages, application areas, installation procedures, common failures, and care recommendations. This comprehensive insight is essential not only for engineers and technicians but also for general industry workers, maintenance professionals, and students entering technical fields.
Let us delve deeply into what makes the O ring a foundational component in modern technology and why understanding it in detail can significantly impact system reliability, safety, and operational efficiency.
What Is an O Ring and Why Is It Used?

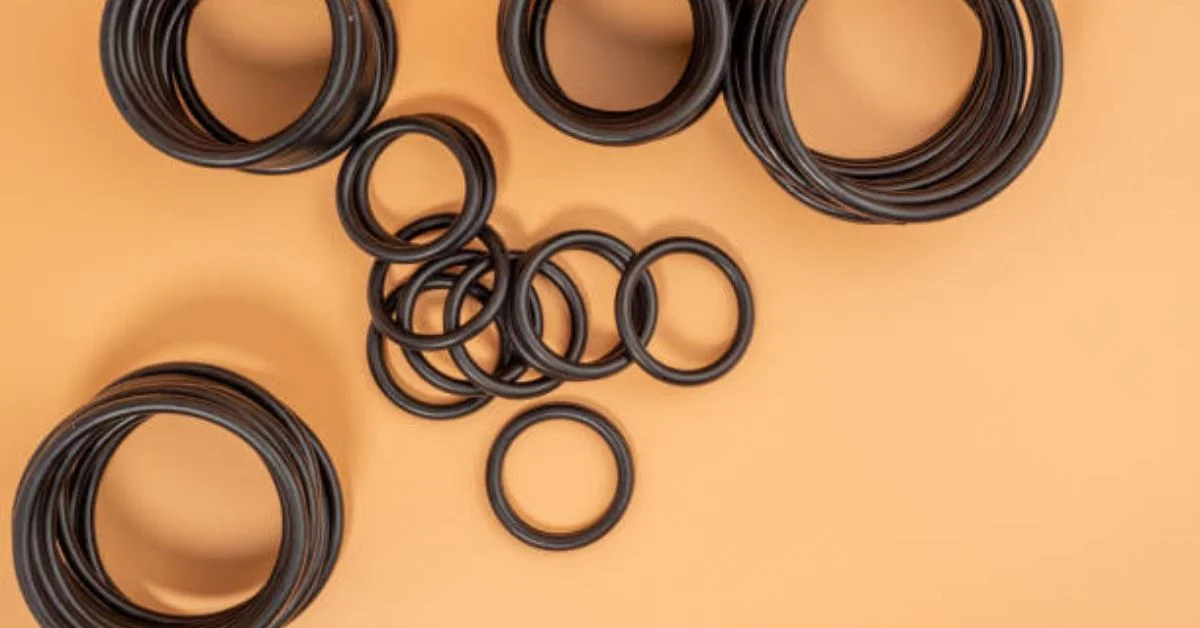

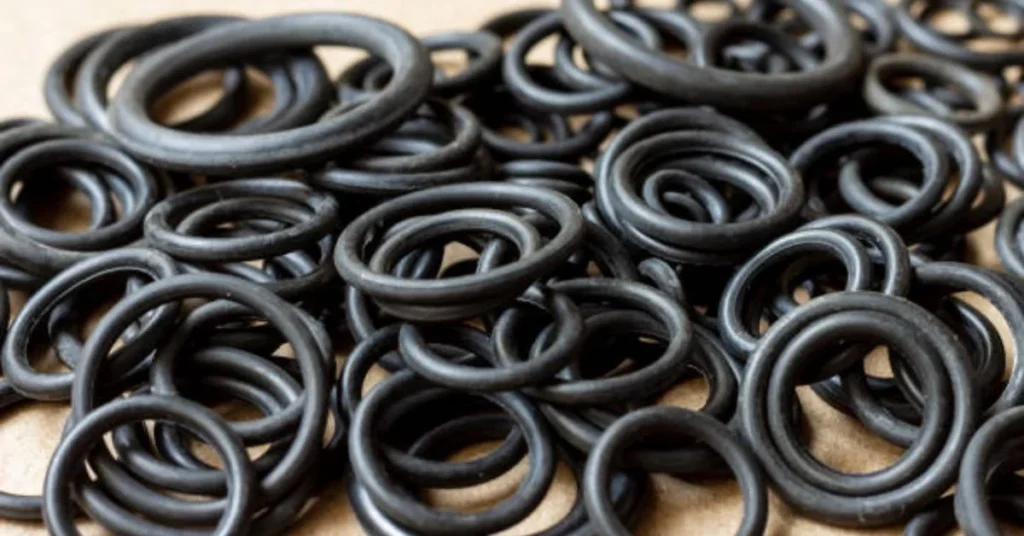

An O ring is a mechanical gasket in the shape of a torus — essentially a loop of elastomer with a round cross-section — that is designed to be seated in a groove and compressed between two or more parts during assembly. Its primary purpose is to form a seal at the interface between joined parts, preventing the passage of fluids (liquids or gases).
The working principle of an O ring is relatively straightforward but highly effective. When the O ring is compressed in its groove, the rubber material expands slightly and creates a sealing surface that blocks any potential path for leakage. This makes the O ring ideal for both static (non-moving) and dynamic (moving) applications.
O rings are often favored for their simplicity, low cost, ease of production, and exceptional sealing capabilities under both high and low pressure. Their ability to perform under a wide range of temperatures, pressures, and chemical exposures further enhances their value.
Design and Geometry of an O Ring
Although an O ring seems simple in shape, the design behind it is highly calculated. Each element of the O ring — from its inner diameter (ID) to its cross-sectional thickness (CS) — must be selected with precision to ensure optimal performance.
1. Inner Diameter (ID)
This refers to the size of the hole in the center of the ring. It must closely match the diameter of the shaft or mating component to form an effective seal.
2. Cross Section (CS)
This is the thickness of the ring from the inner to outer wall. The cross-section determines how much material is available for compression and directly impacts sealing force.
3. Groove Design
O rings sit in machined grooves that help position and contain the seal during compression. Groove width and depth must be compatible with O ring dimensions and the specific type of seal (static or dynamic).
4. Compression and Stretch
The O ring must be compressed by a precise percentage to provide optimal sealing force. Over-compression can lead to wear and failure, while under-compression may result in leaks.
Proper engineering and installation ensure that the O ring deforms elastically and returns to its original shape when pressure is removed, making it a reusable and reliable seal in many applications.
Materials Used in O Ring Manufacturing
The effectiveness of an O ring greatly depends on the material it is made from. Each type of rubber or elastomer has unique characteristics that make it suitable for specific environments, pressures, or chemical exposures.
1. Nitrile (NBR)
Nitrile rubber is one of the most commonly used materials for O rings. It is known for excellent oil and fuel resistance, good wear performance, and affordability. It operates well within -40°C to 120°C and is suitable for automotive, hydraulic, and fuel system applications.
2. Viton (FKM)
Viton is a high-performance fluorocarbon elastomer. It offers excellent heat resistance (up to 200°C), chemical stability, and resistance to aggressive fuels and oils. It is ideal for aerospace, automotive, and chemical processing applications.
3. Silicone (VMQ)
Silicone rubber is valued for its flexibility in extreme temperature ranges (from -60°C to +230°C). It has poor resistance to oil but is excellent in food-grade and medical applications due to its purity and biocompatibility.
4. EPDM (Ethylene Propylene Diene Monomer)
EPDM rubber offers good resistance to weathering, ozone, and steam. It is suitable for water-based applications, brake systems, and some low-pressure hydraulic systems.
5. Neoprene (CR)
Neoprene provides moderate resistance to oils and chemicals and excellent weathering properties. It is often used in refrigeration, automotive air conditioning, and light mechanical sealing.
6. PTFE (Polytetrafluoroethylene)
Although technically not an elastomer, PTFE O rings are used in highly corrosive environments due to their chemical resistance. They are suitable for laboratory and pharmaceutical applications.
Selecting the right material involves evaluating operating temperature, fluid compatibility, pressure conditions, environmental exposure, and expected lifespan.
Applications of O Rings Across Industries
The simplicity and effectiveness of the O ring have led to its adoption across countless industries. Each application brings its own set of requirements in terms of pressure, movement, fluid exposure, and temperature. Below are some prominent sectors where O rings are indispensable:
1. Automotive Industry
O rings are used in engines, fuel systems, air conditioning units, transmission systems, and hydraulic brakes. They must withstand petroleum products, high temperatures, and dynamic movements.
2. Aerospace Industry
Aircraft components such as hydraulic actuators, fuel lines, engines, and environmental control systems rely on O rings for critical sealing under extreme pressure and fluctuating temperatures.
3. Oil and Gas Sector
In drilling rigs, pumps, and pipelines, O rings provide high-integrity seals in harsh, corrosive environments involving chemicals, saltwater, and abrasive particles.
4. Medical and Pharmaceutical
O rings made from medical-grade silicone or EPDM are used in syringes, IV systems, respiratory devices, and surgical instruments. Cleanroom manufacturing ensures they meet biocompatibility standards.
5. Food and Beverage Industry
Sanitary O rings are used in processing equipment, pumps, and valves to prevent contamination. Materials must be food-safe and resistant to fats, sugars, and sanitizing agents.
6. Manufacturing and Robotics
Seals in pneumatic and hydraulic systems, robotic actuators, and assembly equipment rely on O rings to contain air or fluid power with minimal leakage.
Proper Installation and Handling of O Rings
An O ring must be installed correctly to function efficiently. Improper installation can lead to pinching, tearing, or incorrect seating, all of which can compromise sealing ability and shorten service life.
Key Installation Tips:
- Lubricate the O ring to reduce friction during installation and avoid damage.
- Use the right tools, including plastic or brass instruments, to avoid cutting the O ring.
- Avoid twisting or stretching the O ring excessively.
- Clean all surfaces and remove any debris or sharp edges that may tear the seal.
- Verify alignment of parts before applying pressure.
Installation should always be done in a clean, controlled environment, especially for applications in food, medicine, or aerospace.
Common Causes of O Ring Failure
Even though O rings are durable, they can fail if not chosen, installed, or maintained properly. Understanding common failure modes can help prevent system issues.
1. Compression Set
Over time, the O ring loses its elasticity and fails to return to its original shape, leading to a loss of sealing force.
2. Abrasion
Continuous movement against rough surfaces or dry operation without lubrication can wear down the O ring.
3. Chemical Degradation
Exposure to incompatible fluids can cause swelling, cracking, or dissolution of the O ring material.
4. Thermal Degradation
Extreme temperatures can harden or melt the elastomer, causing cracks or total failure.
5. Installation Damage
Nicks, cuts, or incorrect seating during assembly can result in immediate leaks.
Regular inspection, proper material selection, and correct handling techniques are essential for long-term performance.
Maintenance and Care for O Ring Longevity
O rings, like any other component, benefit from routine checks and preventive maintenance. Their performance can be extended by taking specific actions:
- Inspect for signs of wear like cracks, flattening, or brittleness during service intervals.
- Replace O rings periodically, even if they appear functional, to avoid unpredictable failures.
- Store unused O rings in a clean, dark, cool environment away from ozone sources and UV exposure.
- Use compatible lubricants based on O ring material and application.
Developing a maintenance schedule based on application intensity can prevent costly breakdowns.
Environmental and Safety Considerations
With increasing emphasis on sustainability and safety, O ring manufacturing and usage are also under environmental scrutiny. Manufacturers are adopting cleaner production methods, and industries are choosing recyclable or eco-safe materials.
Disposal of used or damaged O rings should be done according to material type. For instance, PTFE may require specialized recycling processes, while nitrile or silicone can be discarded as general waste if uncontaminated.
In regulated industries, documentation of O ring specifications, certifications, and maintenance logs may also be required to meet safety and compliance standards.
Conclusion: Why the O Ring Remains a Cornerstone of Sealing Technology
Despite its simple form, the O ring is one of the most versatile, cost-effective, and reliable sealing solutions ever invented. Its ability to handle complex conditions — including high pressure, extreme temperatures, and chemical exposure — makes it irreplaceable in many sectors. Its long-standing presence in engineering solutions is a testament to its functionality and efficiency.
Understanding how O rings work, how to choose the right one, and how to care for them properly can dramatically enhance equipment performance, minimize maintenance costs, and prevent system failures. From large-scale manufacturing plants to delicate medical equipment, the humble O ring plays a vital role in ensuring safety, reliability, and operational integrity.
FAQs About O Rings
1. What is an O ring used for?
An O ring is used to create a seal between two parts to prevent the leakage of liquids or gases under various pressures and temperatures.
2. How do I choose the right O ring material?
Select based on the operating temperature, chemical exposure, pressure, and environmental conditions. Common materials include nitrile, Viton, silicone, and EPDM.
3. Can O rings be reused after removal?
While some O rings can be reused if undamaged, it is generally safer to replace them during maintenance to ensure optimal sealing.
4. Why do O rings fail prematurely?
Common causes include incorrect installation, material incompatibility, excessive pressure, thermal damage, or poor maintenance.
5. Are all O rings circular in cross-section?
Most O rings have a round cross-section, but some specialized seals may have square or X-shaped profiles for unique sealing requirements.
